Standard directions

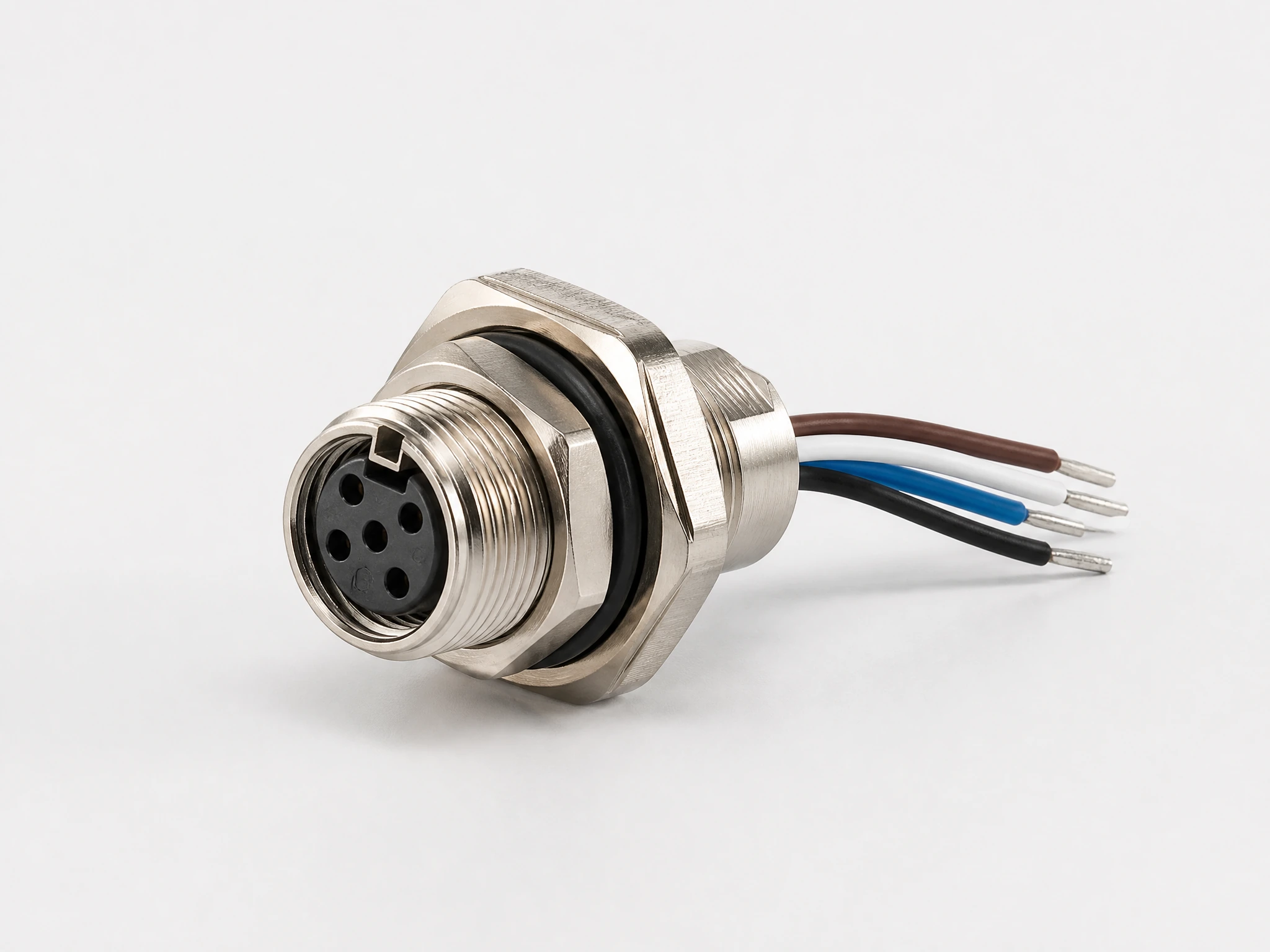

Field-wireable connectors, receptacles, adapters and common sensor connection formats.
01 · Core product

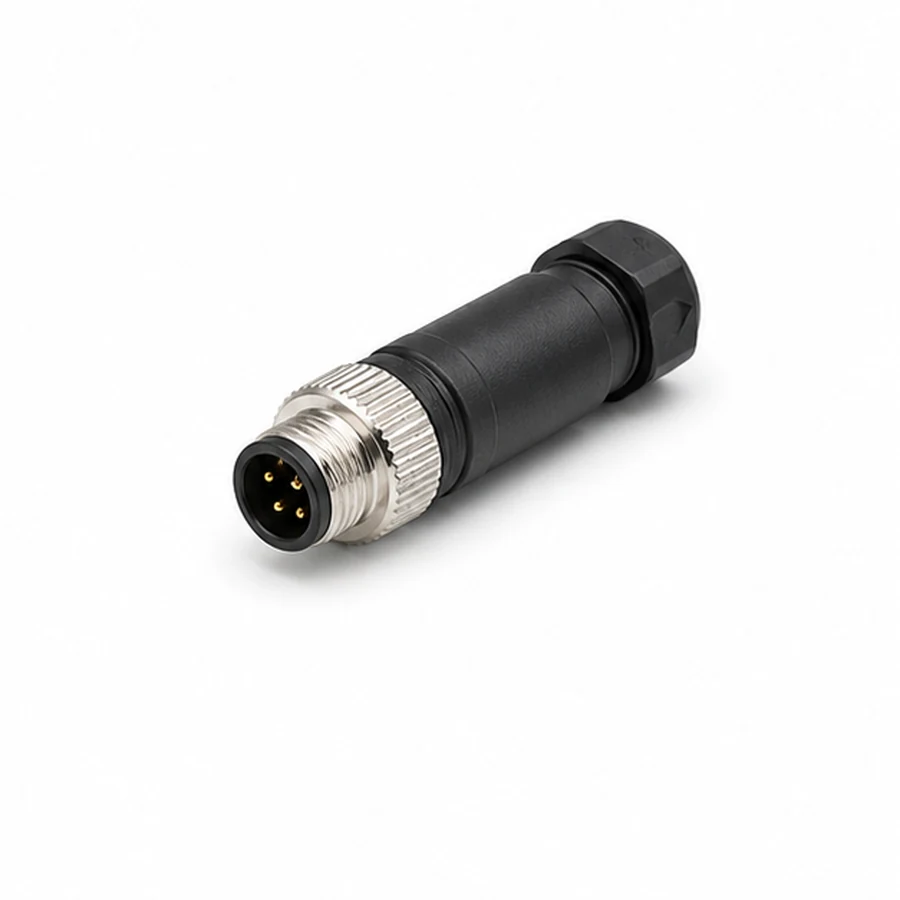

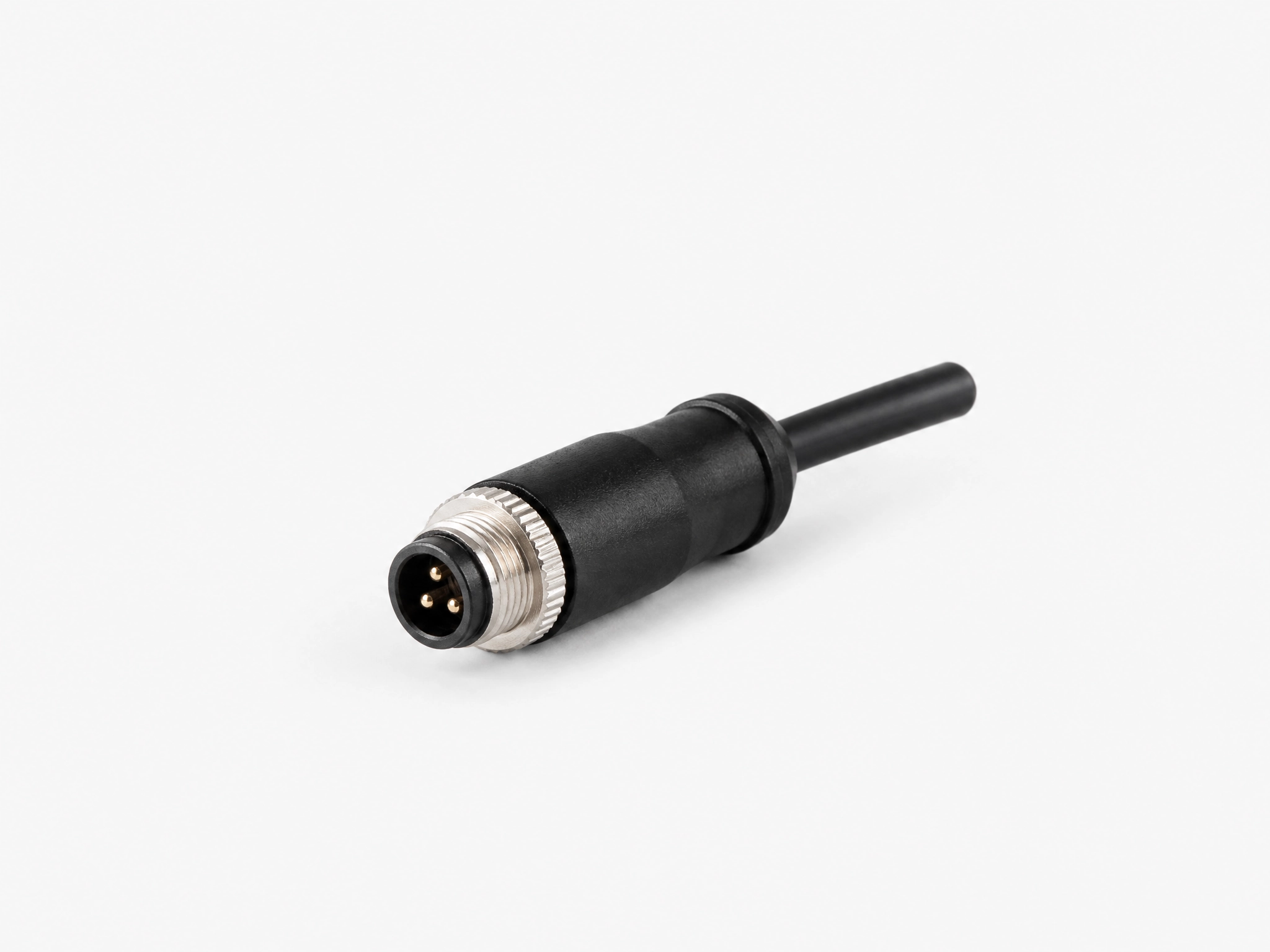

M8 / M12 Sensor Connectivity
Start with the connection format you know. We can help coordinate the remaining details before samples or pricing.
Practical clarification
Coordinate coding, contact count, gender, orientation, termination and environmental needs.
Repeat-ready records
Keep approved specifications, labels and packaging details aligned for repeat sourcing.
Easy for buyers
Quick Specifications
Use these common options to identify a starting direction. Exact ratings and construction depend on the selected configuration.
| Connector | M8 / M12 |
|---|---|
| Contacts | 3 / 4 / 5 / other |
| Gender | Male / female |
| Orientation | Straight / angled |
| Termination | Field-wireable / panel / cable |
| Protection | IP67 / IP68 options |
Detailed when engineers need it
For Engineers
- Coding
- A, B, D, X and other defined requirements
- Electrical
- Rated voltage and current by selected configuration
- Contacts
- Contact material and plating to be confirmed
- Environment
- Temperature, sealing and material requirements
- Pin assignment
- Confirmed against drawing or customer requirement
- Approval
- Final suitability subject to application review
Values are confirmed against the selected product, drawing and application—not assumed from a generic family description.
Typical application direction
Where this connection appears.
Have a current connector, drawing or sensor model? Send it and we will start from there.
Sensors and actuatorsMachine I/OFactory automationControl cabinetsMaterial handling equipmentIndustrial instruments
Start with what you have
A part number. A photo. A drawing.
Or simply tell us what you know.
We will review the available information and identify the specifications that still need confirmation.
Send What You Know
