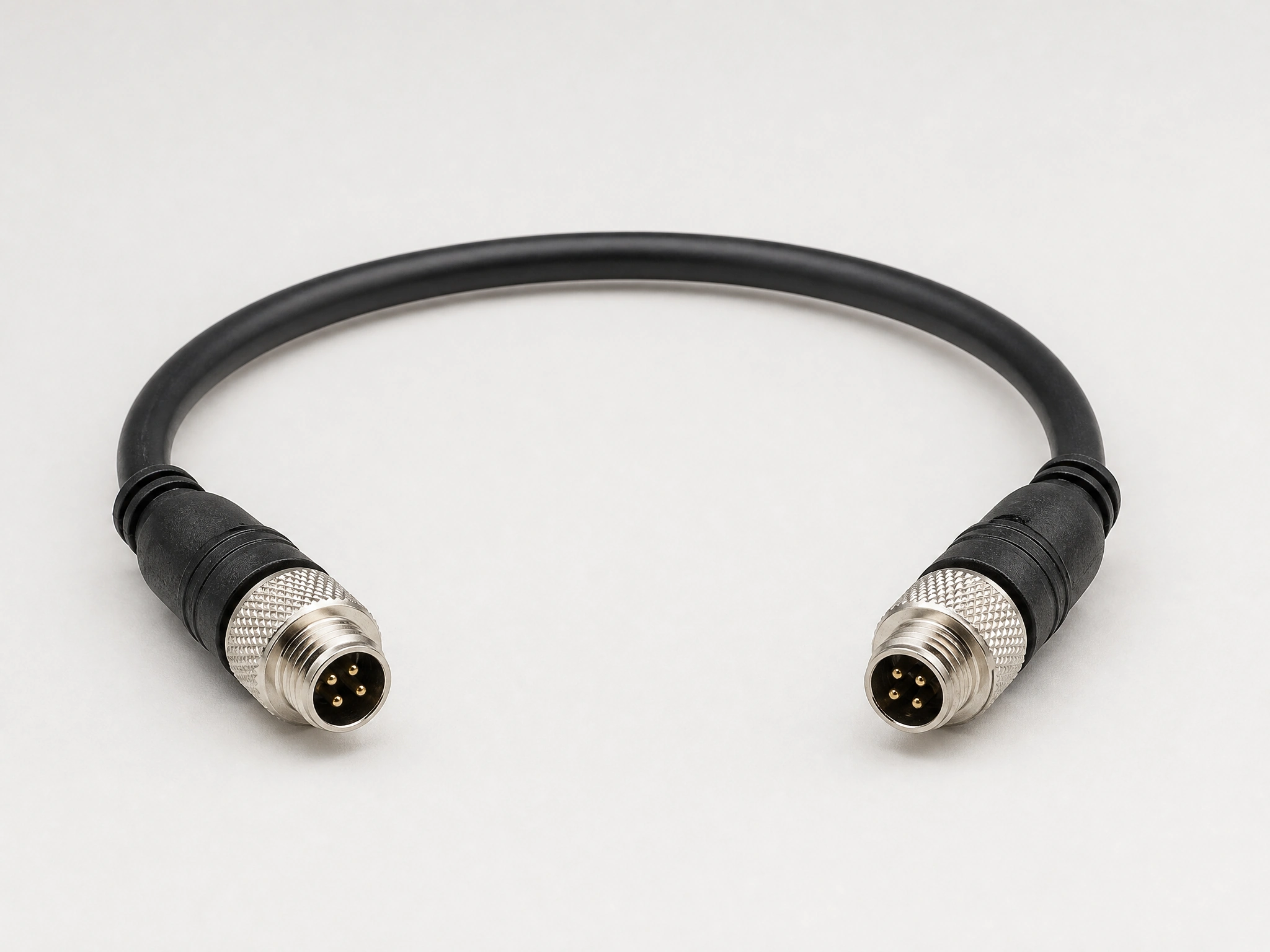

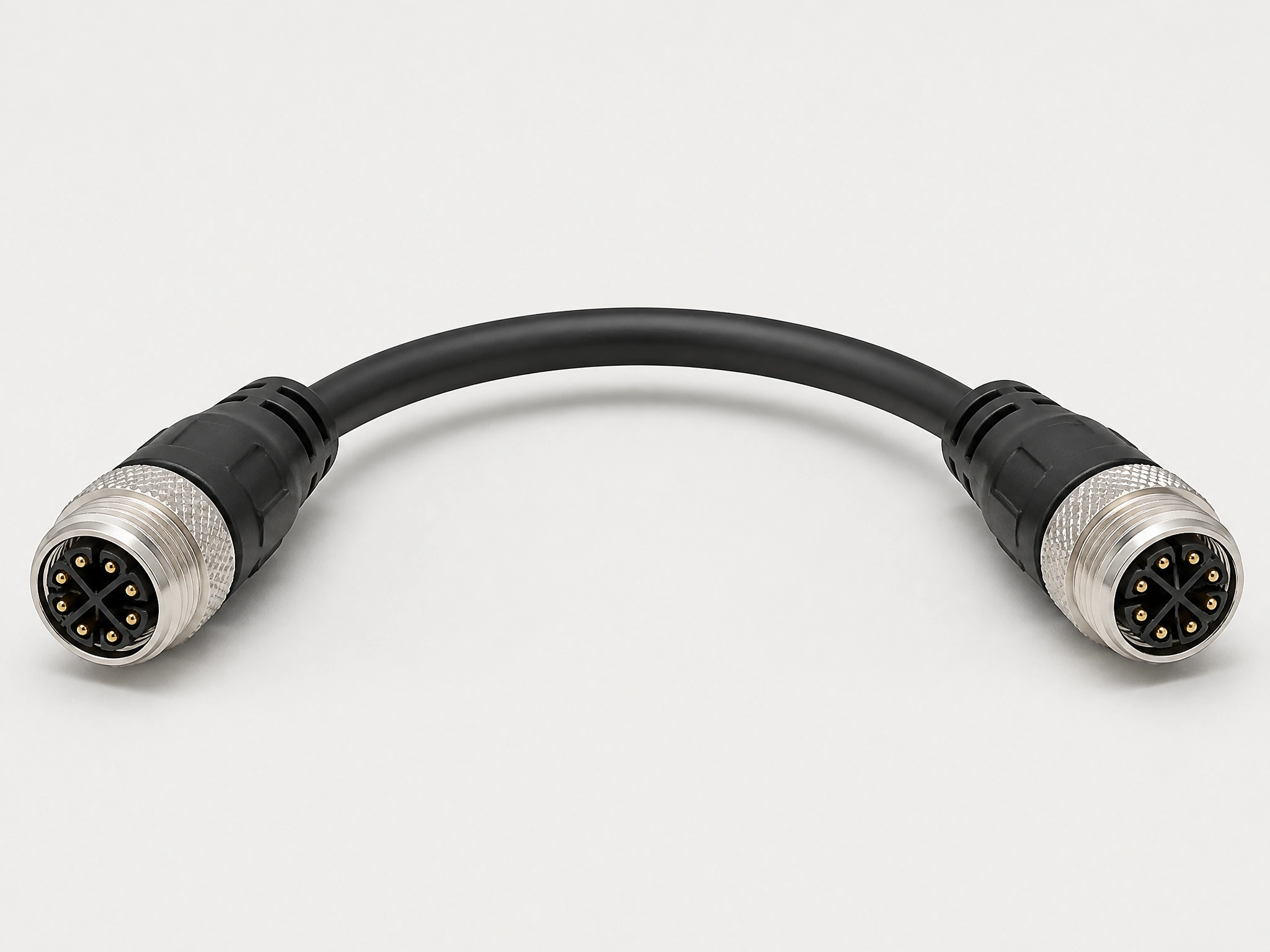

M12 Ethernet
Common industrial circular Ethernet directions for defined equipment interfaces.
03 · Extended connectivity
Industrial Ethernet Connectivity
For machine and industrial data links where connector format, shielding, cable category and pin assignment must be clearly coordinated.

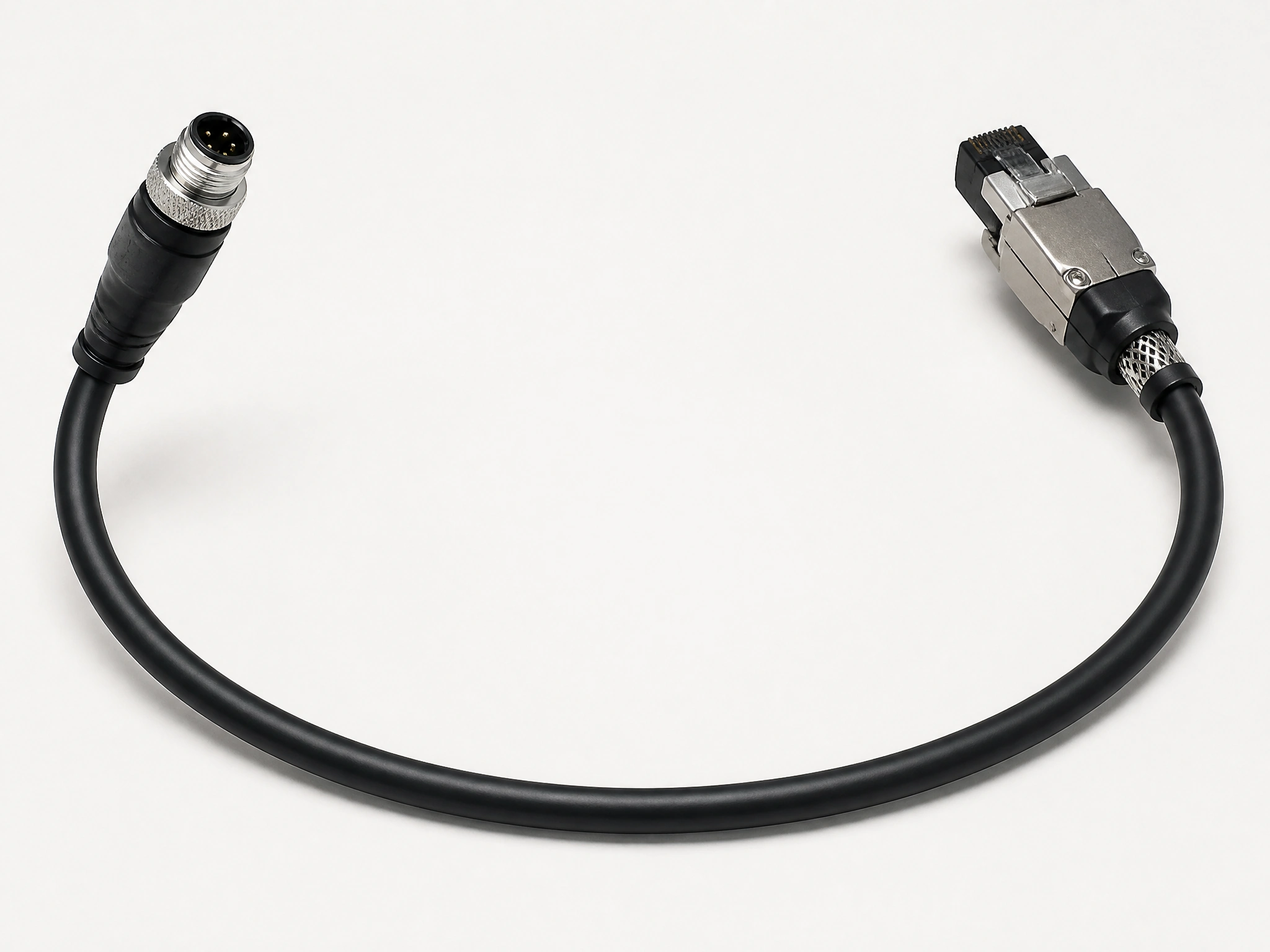

M12 to RJ45
Cable assemblies that bridge industrial circular interfaces and common Ethernet ports.
Configuration records
Coordinate coding, shielding, cable category, length and end combinations.
Easy for buyers
Quick Specifications
Use these common options to identify a starting direction. Exact ratings and construction depend on the selected configuration.
| Connector | M12 / RJ45 |
|---|---|
| M12 coding | D-coded / X-coded options |
| Ends | M12-M12 / M12-RJ45 |
| Cable length | Standard / custom |
| Shielding | Application-dependent |
| Environment | Industrial indoor / protected outdoor |
Detailed when engineers need it
For Engineers
- Data requirement
- Speed and network requirement to be confirmed
- Cable category
- Selected against application and interface
- Shield termination
- Defined with connector and cable construction
- Pin assignment
- Confirmed against equipment documentation
- Jacket
- PVC, PUR or other available construction
- Testing
- Requirements coordinated before sample approval
Values are confirmed against the selected product, drawing and application—not assumed from a generic family description.
Typical application direction
Where this connection appears.
Send the equipment interface, existing cable model or pinout so the data connection can be checked correctly.
Industrial camerasMachine networksRemote I/OControl cabinetsVision systemsAutomation equipment
Start with what you have
A part number. A photo. A drawing.
Or simply tell us what you know.
We will review the available information and identify the specifications that still need confirmation.
Send What You Know
